Description:
The 4K HDMI audio converter Extracts the audio signal from HDMI video source.The audio extractor supports analog stereo audio,as well as high-definition multichannel audio streams over the digital optical audio output.
The HDMI to hdmi audio extractor supports resolutions up to 4K.It is widely compatible with gaming console,blue DVD player etc. Features:
Compliant with HDMI 2.0 and HDCP 2.2
Extracts audio from HDMI video source.
No HDMI output connection is required to receive audio at the analog and optical outputs
Supports resolutions up to 3840X2160/60Hz
Compatible with PS4 PS4 Pro Xbox Series X PS5 apple tv and more.
Support HDMI ARC function HDMI ARC
1)To use arc function, your TV must comes with ARC or Earc port.
2)When ARC is on, the volume can not be adjusted by your TV remote.
3)the correct ARC connection shall be:
3.1)connect your TV’s ARC/Earc port to the HDMI out of our audio converter. and push the selection button to ARC on.
3.2)set the audio output mode of your TV to ARC.
5.1CH Multi-Ch audio
to Get 5.1Ch over the toslink port, pls make sure the video source and the Display connected supports 5.1CH.Otherwise, you can only get 2CH PCM audio
EDID problem
For a few projectors and monitors which comes with VGA and HDMI port. You might not get audio over the toslink&stereo audio port. This is an built-in edid problem of devices. The converter can not solve it as the HDMI port on those devices are very likely based on VGA Standards in spite of its HDMI port physically.
HDMI cables
HDMI 2.0 devices has high requirement on HDMI cable connected. Pls use HDMI ATC-certified premium high speed and above hdmi cable.

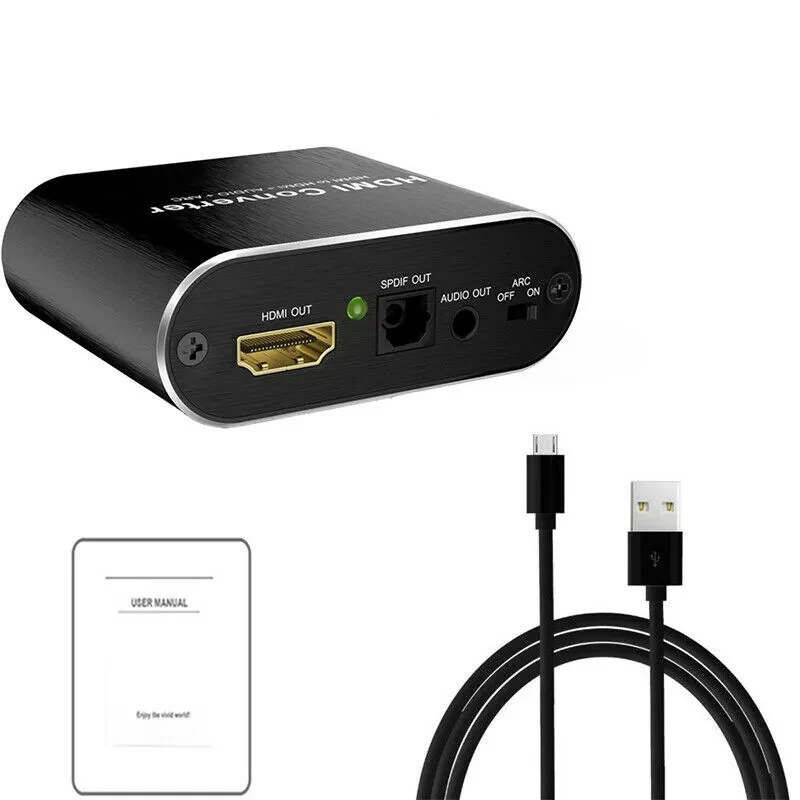

Package contents:
1 x HDMI Audio extractor
1 x USB power cable
1 x User manual
*No retail box, if you need it please contact us before buying.
